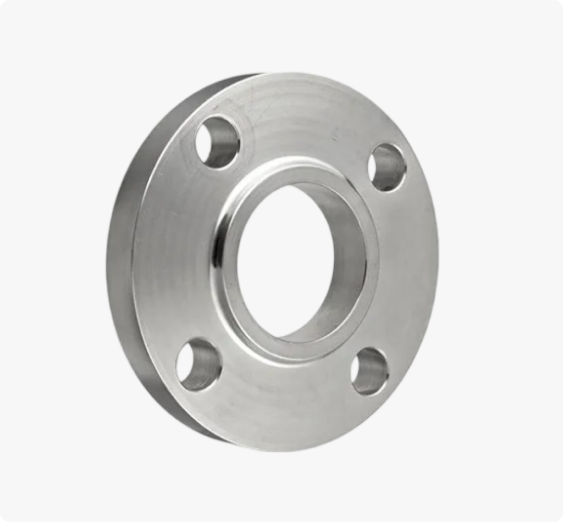

We Kvn Steels is engaged in manufacturing and offering the high quality of Monel 400/K500 Flanges. These flanges are globally appreciated for their ease of installation and greater durability. We as a client-focused industry is providing the same to our clients at various specifications, standards, dimensions, pressure rating, sizes, face types, etc. Also, we make it easily available in custom-built specifications/standards to fulfill the demands of the special application. The product ranges that we provide are designed by using premium quality of Monel 400/K500 alloy only. Also, it is designed according to the national and international product quality standards (ANSI, ASTM, API, DIN, BS, and EN).

We offer different forms of Monel 400/K500 Flanges. It is including plate flanges, socket weld flanges, weld neck flanges, orifice flanges, forged flanges, ring type joint flanges, square flanges, threaded flanges, slip-on flanges, blind flanges, reducing flanges, lap joint flanges, tongue & groove flanges, male & female flanges, etc.

Monel 400 is the copper and nickel-based alloy that is resisting seawater and steam at greater temperatures. Also, it is resisting caustic and salt solutions. It is a solid solution alloy that can be hardened easily by the cold working technique. Also, it is exhibiting properties such as corrosion resistance, high strength, good welding ability, stress corrosion cracking and at hydrofluoric and hydrochloric acids.

Alloy ASTM B564 K500 Long Weld Neck Flanges, Monel K500 Slip on Flanges, ASTM B564 Monel 400 / K500 Blind Flanges Exporter, Monel 400 Ring Type Joint - RTJ Flanges, Monel 400 / K500 Weld Neck Flanges, ASTM B564 Monel 400 / K500 Flanges Supplier, Monel 400 Flanges, Alloy 400 / K500 Flanges Manufacturer in India.

Alloy DIN 2.4375 Spectacle Blind Flanges Dealer, ASTM B564 Monel K500 SORF Flanges, Monel UNS N05500 Plate Flanges, UNS N04400 Socket Weld Trader, 400 Monel Threaded Flanges Stockists, DIN 2.4360 Pipe Flanges, ASME SB564 Monel 400 / K500 Flanges Supplier in India.

Monel K500 is the precipitation-hardenable copper and nickel-based alloy. It is having good corrosion resistance ability. It is having a good ability to withstand stress corrosion cracking at severe atmospheric conditions. Alloy K500 is having thrice the yielding strength and twice the tensile strength.

Our Monel 400/K500 Flanges that reaches to our esteem patrons is having many commendable properties to offer. Some of those are good tensile strength, non-corrosive body, high yielding strength, general corrosion resistance, long lastingness, withstand at corrosive atmosphere, etc.

Today Monel 400/K500 Flanges are used in many industrial applications. It is like heat exchangers, condensers, automotive industry, chemical industry, pulp & paper industry, etc.

Monel 400/K500 Flanges is delivered to our clients with all proper documentation. Those are radiography test report, MTC, packaging list, third-party test report, material identification report, QAP, etc.

Monel 400 / K500 Flanges Equivalent Grades

STANDARD	UNS	WNR.	JIS	EN
Monel 400	N04400	2.4360	NW 4400	NiCu30Fe
Monel K500	N05500	2.4375	-	-

Alloy 400 / K500 Slip On Flanges

Monel 400 SORF Flanges, UNS N04400 / N05500 Slip On Flanges, DIN 2.4360 SORF Flanges, ASME SB 564 Alloy K500 Slip-on Raised Face Flanges

Monel 400 / K500 Weld Neck Flanges

ASME SB564 Monel 400 WNRF Flanges, ASTM B564 Monel K500 Weld Neck Flanges, DIN 2.4360 Weld Neck Flanges, UNS N04400 Weld Neck Raised Face Flanges

Alloy 400 / K500 Blind Flanges

ASTM B564 Monel 400 Blind Flanges, UNS N04400 / DIN 2.4360 Blind Flanges, ASME SB564 Alloy K500 BLRF Flanges, Alloy 400/K500 Blind Raised Face Flanges Supplier

Alloy 400/K500 Threaded Flanges

DIN 2.4360 Threaded Flanges, UNS N04400 Screwed Flanges, ASME SB 564 Alloy K500 Threaded Flanges, ASTM B564 Monel K500 Threaded Flanges

Alloy 400/K500 Socket Weld Flanges

ASTM B564 K500 Monel Socket Weld Flanges, Monel UNS N04400/ N05500 Socket Weld Flanges, Alloy DIN 2.4375 Socket Weld Flanges

Monel 400/K500 Lap Joint Flanges

UNS N04400 Lap Joint Flanges, Monel 400 Lap Joint Flanges, ASTM B564 K500 Monel Lap Joint Flanges, ASME SB564 Monel Alloy 400/K500 Lap Joint Flanges

Alloy 400/K500 Ring Type Joint Flange

UNS N04400 Ring Type Joint Flange, ANSI B16.5 Monel 400 RTJ Flanges, ASTM B564 Monel K500 Ring Type Joint Flanges, ASME SB564 Alloy 400/K500 Ring Type Joint Flanges

Monel 400/K500 Orifice Flanges

UNS N04400 Orifice Flanges, B16.36 Monel 400 / K500 Orifice Flanges, ASTM B564 Alloy 400 Orifice Flanges, ASME SB 564 Monel Alloy 400/K500 Orifice Flanges

Alloy 400/K500 Long Weld Neck Flanges

UNS N05500 Long Weld Neck Flanges, Monel 2.4375 Long Weld Neck Flanges, ASTM B564 Monel K500 Long Weld Neck Flanges, ASME SB 564 Monel K500 Long Weld Neck Flanges

Monel 400/K500 Spectacle Blind Flanges

UNS N05500 Spectacle Blind Flanges, ANSI / ASME B16.5 Alloy K500 Spectacle Blind Flanges, ASTM B564 Alloy 400/K500 Spectacle Blind Flanges, SB 564 Monel 400/K500 Spectacle Blind Flanges

Monel 400/K500 Forged Flanges

UNS N05500 Forged Flanges, B16.5 Alloy 400 Forged Flanges, ASTM B564 Monel Alloy K500 Forged Flanges, ASME SB564 Alloy 400/K500 Forged Flanges

Monel 400/K500 Plate Flanges

UNS N04400 Plate Flanges, ANSI B16.5 Monel 400/K500 Plate Flanges, ASTM B564 Monel 400/K500 Plate Flanges, ASME SB564 Monel Alloy K500 Plate Flanges

Monel Flanges Specification :

ASTM B564 / ASME SB564

Dimension Standard :

ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard :

ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size :

1/2" (15 NB) to 48" (1200NB)

Class / Pressure :

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type :

Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

DIN Flanges :

DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.

JIS Flanges :

JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K

BS Flanges :

BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.

Chemical Composition of Monel 400 / K500 Flanges

Grade	Ni	Fe	C	Mn	Si	Cu	Al	Ti	S
400	63.0- 70.00 max	2.50 max	0.3 max	2.00 max	0.50 max	Remainder	-	-	0.024 max
K500	63.0 min	05 - 2	0.25 max	1.5 max	0.5 max	27.0 - 33.0	2.3 - 3.15	0.35 - 0.85	0.010 max

Mechanical Properties Of Monel 400 / K500 Flanges

Grade	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness (HRb)
400	75 to 90	25 to 50	60 to 35	60 to 80
K500	Psi – 1,60,000 , MPa – 1100	Psi – 1,15,000 , MPa – 790	20 %	-

Physical Properties of Monel 400/K500 Flanges

Density@ Room Temp	0.318 lb/in3
Elastic Modulus @ 70ºF (tension)	26.0 x 106psi
Specific Heat @ 70°F	0.102 Btu/lb/°F
Melting Point	2370°F to 2460°F
Thermal Conductivity @ 70°F	151 Btu • in/h/ft 2 /°F
Electrical Resistivity @ 70°F	0.511 μ Ω • m
