Kvn Steel Engg.And CO. is manufacturing and supplying the Nickel 200 Forged Fittings from the number of years. They have made a patent of the restricted best quality which matches both the national and international markets. They provide the product according to their client's needs as per the market demand.

Nickel as an alloy or as an elemental form has made many desirable contributions to society and always ready to supply more materials with the increase in demand in the future. Nickel is a highly flexible substance that converts in alloy with most of the metals which makes it suitable for most of the industries. Nickel is a basic element in the nickel alloy. It is used in a different type of application because of its high flexibility and excellent corrosion and heat resistance. This element is highly used in nuclear and energy power plants

ASTM B564 Nickel 201 Forged Tee Exporter, Nickel Alloy 201 Socket Weld Equal Tee, Nickel 200 Forged Fittings, Alloy 200 Forged Threaded 90 deg Elbow, ASTM B564 Nickel Alloy 200/201 Threaded Fittings, ASTM B564 Nickel 200 Socket Weld Fittings Supplier, Nickel 201 Forged Fittings, Alloy 200/201 Forged Fittings Manufacturer in India.

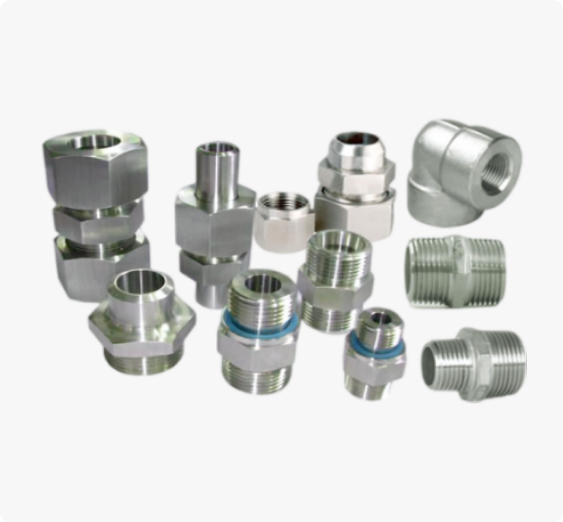

Forged steel is used to make the Nickel 200/201 Forged Fittings. Trimming and shot blasting, put pressure on heated billets for making the desired shape and heating and cutting billets is included in the process of manufacturing the forged steel fittings. They are accessible in socket weld end connections and threaded depends on the application of the forged fitting.

Nickel Alloy DIN 2.4066 Plug Dealer, UNS N02200 Socket Weld 90 deg Elbow Trader, Nickel UNS N02201 Hex Bushing, DIN 2.4068 Forged Pipe Fittings, ASTM SB564 Alloy 200 High Pressure Forged Pipe Fittings, 201 Nickel Socket Weld Union Stockists, ASME SB564 Alloy 200/201 Forged Fittings Supplier in India.

Types of Nickel 200/201 Forged Fittings are Tee- This is used to divide or combine process flow and lessen tees is allowed additionally for changing the size of the pipe. Elbows- It is installed in two pipe or tube lengths which automatically allow changing the direction mostly in the 45 degrees to 90-degree direction. It has two ends one is the male and the second one is female and it can also avoid the nipple pipe use in the installation process. Couplings are the type of fitting that is used to join the length of two pipes and Half-couple is the screw in the pipe, and the other part is deeply welded or inserted on the end part to vessel or pipe.

Nickel 200/201 Forged Fittings is applied in the industries: Plumbing, Oil and gas pipeline, Water supply systems, Uses in power plant, Paper, and pulp industry, Fabrication industry, Food processing industry, Structural pipe, and General purpose applications.

200/201 Nickel Forged Fittings Equivalent Grades

STANDARD	UNS	WNR.	JIS	EN
Nickel 200	N02200	2.4066	NW 2200	Ni 99.2
Nickel 201	N02201	2.4068	NW 2201	LC-Ni 99

Nickel 200/201 Socket Weld Elbow

Nickel 200 Forged Elbow, UNS N02200 / N02201 Threaded Elbow, DIN 2.4068 Forged Elbow, ASME SB564 Nickel Alloy 200/201 45 deg Threaded Elbow, Nickel 200 90 deg Forged Elbow

Nickel 200/201 Forged Tee

ASME SB564 Nickel 201 Socket Weld Tee, ASTM B564 Nickel 200 Forged Equal Tee, DIN 2.4066 Reducing Tee, UNS N02201 Unequal Tee, Nickel® 200 / 201 Reducing Tee, Alloy 200 Threaded Equal Tee

Nickel 200/201 Forged Cross

Nickel® Alloy 200 Threaded Equal Cross, UNS N02200 / DIN 2.4066 Forged Cross, Alloy 201 Socketweld Equal Cross, Nickel 200 Threaded Cross, Nickel Alloy 200 Reducing Cross, Alloy 201 Forged Unequal Cross

Alloy 200/201 Full Coupling

DIN 2.4066 Threaded Full Coupling, UNS N02200 Forged Full Coupling, ASME SB564 Nickel 201 Socketweld Full Coupling, ASTM B564 200 Alloy Full Coupling

Nickel 200/201 Forged Half Coupling

ASTM B564 200/201 Nickel Socket Weld Half Coupling, Alloy UNS N02200/ N02201 Half Coupling, ANSI B16.11 Nickel 200 Threaded Half Coupling

Nickel 200/201 Forged Pipe Cap

UNS N02200 Forged Pipe End Cap, Nickel 200 Threaded Pipe Cap, ASTM B564 Nickel® 200 Socketweld Pipe Cap, ASME SB564 Nickel Alloy 201 Forged Pipe End Cap

Alloy 200/201 Forged Union

UNS N02200 Socketweld Union, ANSI B16.5 Nickel 200 Union, ASTM B564 Alloy 200/201 Threaded Union, ASME SB 564 Nickel® 200 / 201 Forged Union

Nickel 200/201 Forged Bushing

UNS N02200 Bushing, B16.36 Nickel 200 Hex Head Bushing, ASTM B564 Nickel 200/201 Threaded Bushing, ASME SB 564 Alloy 200 / 201 Forged Threaded Bushing

Nickel 200/201 Forged Nipple

UNS N02200 Threaded Nipple, B16.36 Alloy 200 Socketweld Nipple ASTM B564 Nickel 201 Swage Nipple, ASME SB564 Alloy 201 Hex Nipple, Nickel® 200/201 Screwed Pipe Nipple

Nickel Forged Fittings Specification :

ASTM B564 / ASME SB564

Dimension Standard :

ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size :

1/8" NB to 4" NB

Type :

Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure :

Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

Chemical Composition of Nickel 200/201 Forged Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min
Nickel 201	0.02 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Mechanical Properties Of Nickel 200/201 Forged Fittings

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %
Nickel 201	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Physical Properties of 200/201 Nickel Forged Fittings

Density (Kg.m-1)	84.3
Magnetic Permeability (20°C)	<1.005
Curie Temperature (°C)	-90
Young’s Modulus (N/mm2)	179 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	418
Specific Electrical Resistance, 20°C (?O.m)	0.62
Thermal conductivity,20°C (W.m-1.°K-1)	17.5
Mean coefficient of thermal expansion, 20-100°C (°K-1)	13.4 x 10-6
